Stainless Steel CNC Machining Services
JeekRapid provides stainless steel CNC machining for custom prototypes and production parts, including 303, 304, 316, 17-4 PH, 410, 420, and other stainless steel grades.
Stainless Steel CNC Machining Capabilities
Stainless steel CNC machining can include milling, turning, drilling, boring, tapping, thread milling, reaming, chamfering, deburring, polishing, passivation, and dimensional inspection based on the drawing requirements.
CNC Milling
CNC milling is used for stainless steel brackets, housings, plates, slots, pockets, mounting faces, counterbores, and complex machined features.
CNC Turning
CNC turning is used for stainless steel shafts, bushings, sleeves, fittings, collars, threaded round parts, and precision cylindrical components.
Hole Machining
Drilling, boring, reaming, and counterboring are used for stainless steel holes that require accurate size, alignment, surface finish, or assembly fit.
Thread Machining
Tapping and thread milling are used for internal threads, blind holes, threaded fittings, fastener holes, and stainless steel parts where broken tap risk must be controlled.
Edge and Surface Finishing
Chamfering, deburring, polishing, bead blasting, and passivation can be applied when stainless steel parts need clean edges, better appearance, or improved corrosion resistance.
Inspection Support
JeekRapid reviews critical dimensions, threaded holes, bores, surface finish notes, and tolerance requirements before machining and inspection.
Stainless Steel Grades We Machine
JeekRapid machines a range of stainless steel grades for prototypes and custom production parts. The right grade depends on corrosion resistance, strength, machinability, surface finish, heat treatment, and the working environment of the part.
| Grade | Best For | Machining Notes |
|---|---|---|
| 303 Stainless Steel | Threaded parts, fittings, shafts, small precision parts | Better machinability, but lower corrosion resistance than 304 and 316 |
| 304 Stainless Steel | General stainless steel parts, brackets, housings, plates, food equipment parts | Balanced cost, availability, and corrosion resistance |
| 316 Stainless Steel | Marine parts, medical components, chemical equipment, outdoor parts | Better corrosion resistance, especially against chlorides, but higher cost |
| 17-4 PH Stainless Steel | High-strength precision parts, shafts, valve parts, aerospace-style components | Heat treatable, good strength, suitable for demanding machined parts |
| 410 / 420 Stainless Steel | Wear parts, hardened components, shafts, valves, mechanical parts | Higher hardness, moderate corrosion resistance, machining depends on condition |
| 430 Stainless Steel | Covers, panels, lower-cost corrosion-resistant parts | Moderate corrosion resistance, lower cost, suitable for less demanding environments |
If the stainless steel grade is already specified on the drawing, the machining requirements can be reviewed based on that grade. If the grade is not fixed yet, material options such as 303, 304, 316, and 17-4 PH can be compared based on part function, corrosion exposure, tolerance requirements, and cost target.
Why Stainless Steel Is Harder to Machine
Stainless steel is stronger and tougher than aluminum, but that also makes the material more demanding during CNC machining. Stainless steel has higher cutting resistance, lower thermal conductivity, stronger work-hardening behavior, and higher tool wear. If the cutting tool rubs instead of cutting cleanly, the surface can harden and become more difficult to machine.
A stable stainless steel machining process needs proper tool selection, rigid workholding, suitable cutting parameters, coolant control, roughing and finishing passes, deburring, and dimensional inspection. For parts with deep holes, thin walls, threaded features, tight bores, sealing surfaces, or cosmetic requirements, the machining process should be reviewed before production to reduce tool wear, burrs, heat buildup, and tolerance problems.

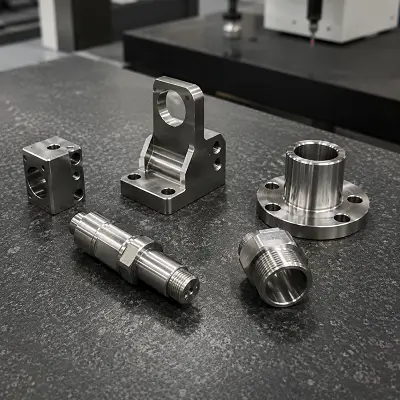

Common Stainless Steel CNC Machined Parts
Stainless steel CNC machined parts are widely used in industrial equipment, medical devices, food equipment, marine hardware, automation systems, pumps, valves, and custom mechanical assemblies. Stainless steel is often selected when a part needs corrosion resistance, strength, clean appearance, wear resistance, or long-term durability.
Shafts, Pins, and Sleeves
CNC turned stainless steel shafts, pins, sleeves, and round parts with diameter, groove, thread, shoulder, and surface finish control.
Fittings and Threaded Parts
Custom stainless steel fittings, adapters, collars, threaded holes, threaded inserts, and fastener-related components.

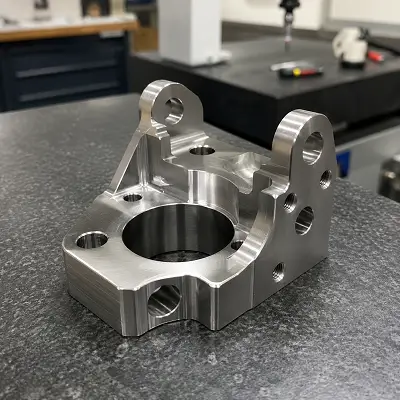

Brackets and Mounting Plates
Stainless steel brackets, mounting plates, covers, and support parts used in industrial and equipment assemblies.
Housings, Covers, and Enclosures
Machined stainless steel housings, covers, and enclosures with pockets, holes, sealing faces, and mounting features.
Valve and Pump Components
Corrosion-resistant valve parts, pump components, sleeves, seats, sealing-related parts, and fluid system components.
Medical, Food, Marine, and Custom Parts
304, 316, and 17-4 PH stainless steel parts for medical equipment, food equipment, marine use, fixtures, and custom industrial assemblies.
Surface Finishing and Inspection for Stainless Steel Parts
Stainless steel CNC machined parts may require as-machined finishes, polishing, brushing, bead blasting, deburring, passivation, or other finishing options based on the drawing requirements. Passivation is often used when stainless steel parts need better corrosion resistance after machining.
For inspection, critical dimensions, threaded holes, bores, sealing faces, surface finish notes, and tolerance requirements can be reviewed before production.

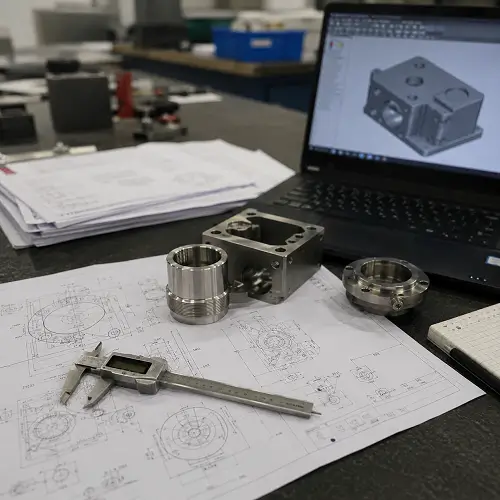

What to Provide for a Stainless Steel CNC Machining Quote
A clear quote starts with a 3D CAD file and a 2D drawing. The drawing should include stainless steel grade, quantity, tolerances, thread details, surface finish, passivation needs, and inspection requirements.
When the stainless steel grade is not fixed, the working environment should be explained so the material choice can be reviewed before machining.
Request a Stainless Steel CNC Machining Quote
JeekRapid provides stainless steel CNC machining for prototypes and custom production parts. If your part requires corrosion resistance, tight tolerances, threaded features, sealing surfaces, passivation, or inspection control, send your CAD files and drawings for review.
Upload your files to request a stainless steel CNC machining quote.
